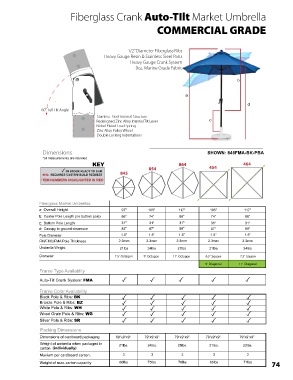

Page 77 - sunbrite-main-furniture-catalog-2018

1/2” Diameter Fiberglass Ribs
Heavy Gauge Resin & Stainless Steel Parts
Heavy Gauge Crank System
9oz. Marine Grade Fabric

SHOWN: 845FMA-BK-PBA

:IN STOCK READY TO SHIP
N/A: REQUIRES CUSTOM BUILD REQUEST
ITEM NUMBERS HIGHLIGHTED IN RED

Fiberglass Market Umbrellas
97” 105” 117” 105” 117”
Center Pole Length (no bottom pole) 66” 74” 86” 74” 86”
31” 31” 31” 31” 31”
Canopy to ground clearence 82” 87” 99” 87” 99”
Pole Diameter 1.5” 1.5” 1.5” 1.5” 1.5”
FM/FMC/FMA Pole Thickness 2.3mm 2.3mm 2.3mm 2.3mm 2.3mm
Umbrella Weight 21lbs 24lbs 27lbs 21lbs 24lbs
Diameter 7.5’ Octagon 9’ Octagon 11’ Octagon 6.5’ Square 7.5’ Square
9’ Diagonal 11’ Diagonal
Frame Type Availablity
Auto-Tilt Crank System: FMA

Frame Color Availability
Black Pole & Ribs: BK
Bronze Pole & Ribs: BZ
White Pole & Ribs: WH
Wood Grain Pole & Ribs: WG

Silver Pole & Ribs: SR
Packing Dimensions
69”x9”x9” 79”x9”x9” 79”x9”x9” 79”x9”x9” 79”x9”x9”
21lbs. 24lbs. 25lbs. 21lbs. 22lbs.

Maxium per cardboard carton. 3 3 3 3 3
Weight of max. carton capacity 66lbs 75lbs 78lbs 66lbs 71lbs
74
